Summary

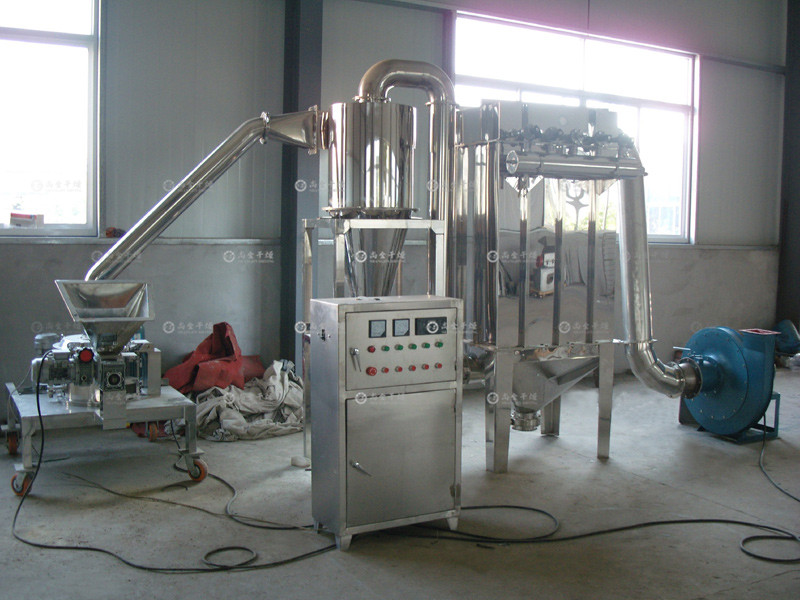

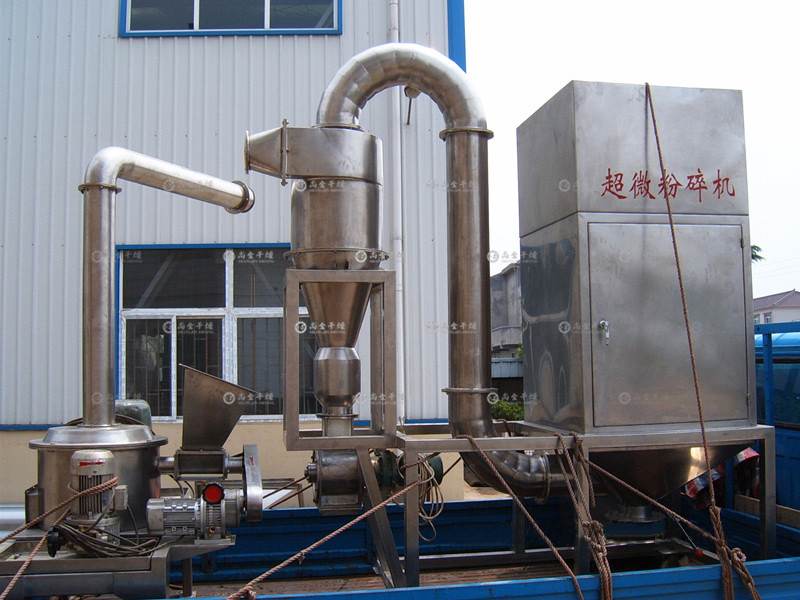

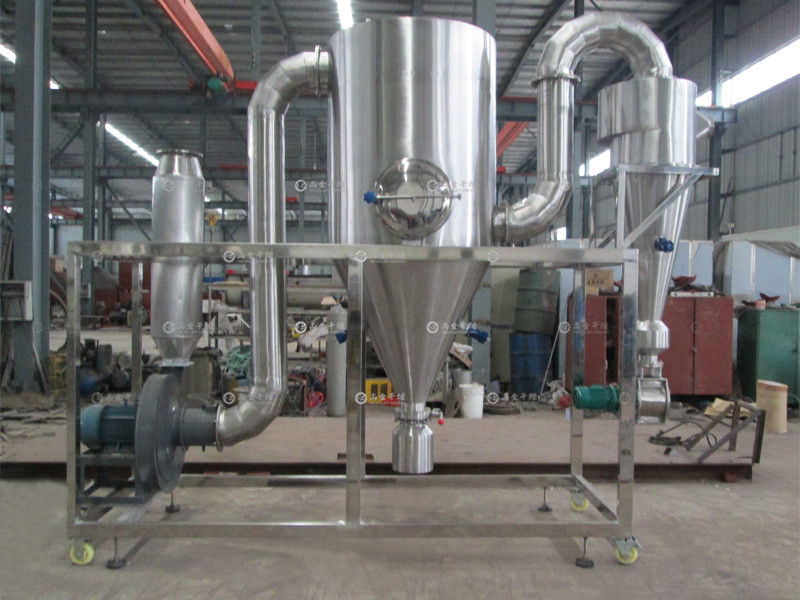

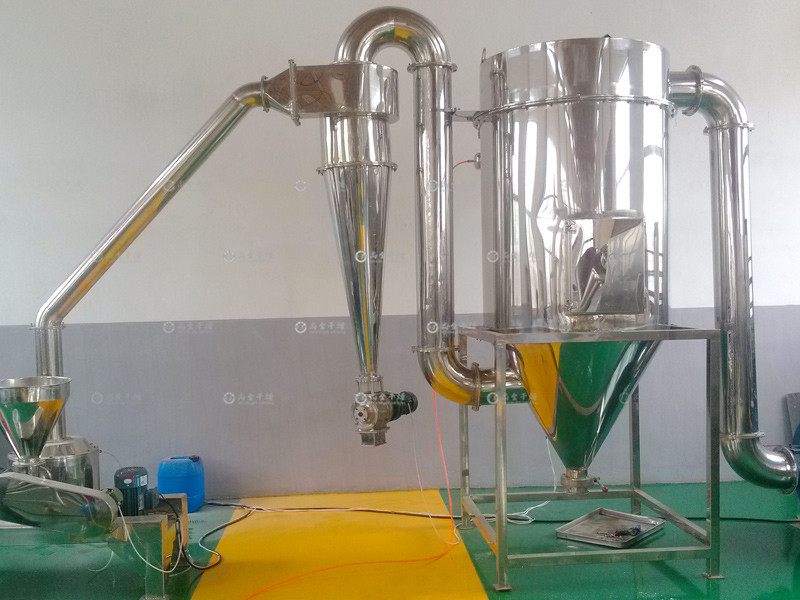

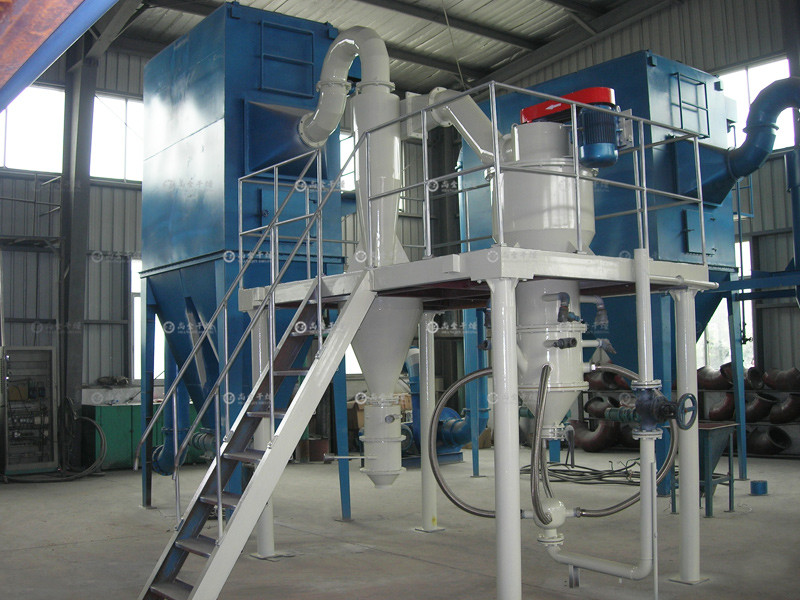

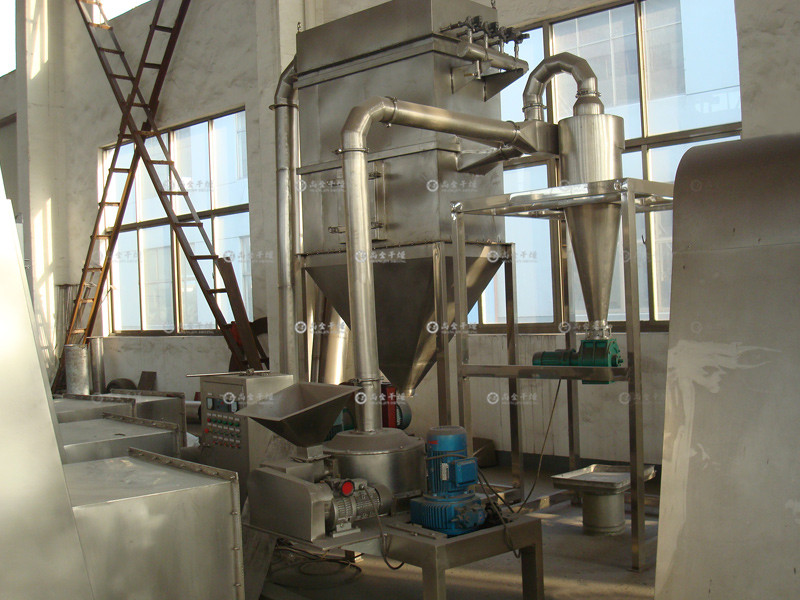

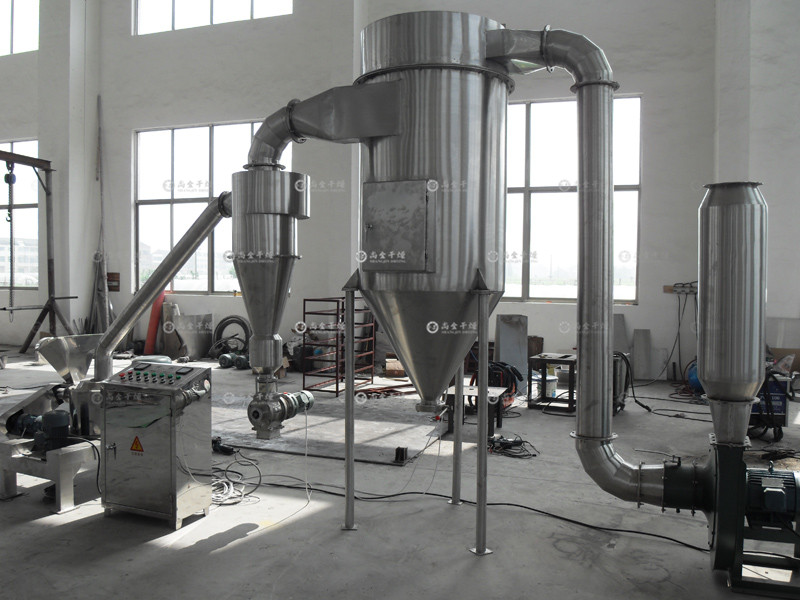

This machine is composed of three parts: main machine, auxiliary machine and electric control box. It has a variety of performances such as air separation, no screen, uniform particle size, etc. The production process is continuous, and it is suitable for crushing brittle materials in pharmaceutical, chemical, food and other industries.
| Model | Unit | WFJ-15 | WFJ-18 | WFJ-32 |
| Productive power | kg/h | 10-200 | 20-450 | 60-800 |
| Feed size | mm | ＜10 | ＜10 | ＜15 |
| Discharge particle size | mesh | 80-320 | 80-450 | 80-450 |
| Aggregate capacity | kw | 13.5 | 17.5 | 46 |
| Main speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Overall dimension | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| Weight | kg | 850 | 980 | 1500 |
?
